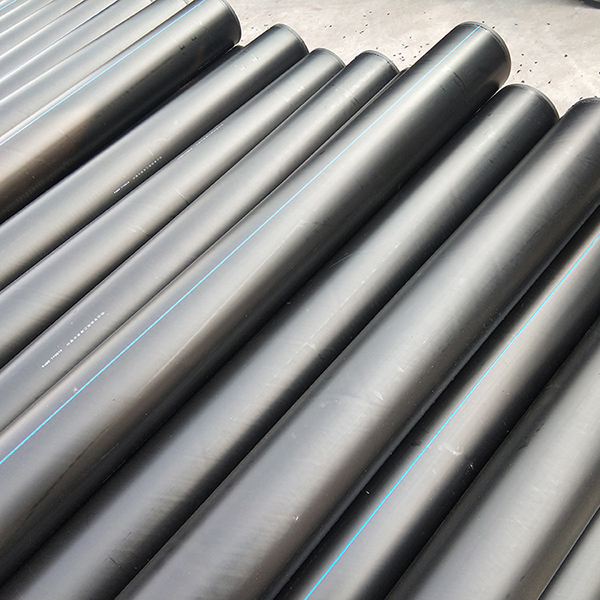

钢丝网骨架塑料复合管
钢丝网骨架塑料复合管材、管件严格执行CJ/T 189-2007标准《钢丝网骨架塑料（聚乙烯）复合管材及管件》
|
产品参数 |
|||||||
|
公称 |
公称压力MPa |
||||||
|
|
0.8 |
1.0 |
1.25 |
1.6 |
2.0 |
2.5 |
3.5 |
|
|
公称壁厚mm |
||||||
|
50 |
|
|
|
4.5 |
5.0 |
5.5 |
5.5 |
|
63 |
|
|
|
4.5 |
5.0 |
5.5 |
5.5 |
|
75 |
|
|
|
5.0 |
5.0 |
5.5 |
6.0 |
|
90 |
|
|
|
5.5 |
5.5 |
5.5 |
6.0 |
|
110 |
|
5.5 |
5.5 |
7.0 |
7.0 |
7.5 |
8.5 |
|
140 |
|
5.8 |
5.5 |
8.0 |
8.5 |
9.0 |
9.5 |
|
160 |
|
6.0 |
6.0 |
9.0 |
9.5 |
10.0 |
10.5 |
|
200 |
|
6.0 |
6.0 |
9.5 |
10.5 |
11.0 |
12.5 |
|
225 |
|
8.0 |
8.0 |
10.0 |
10.5 |
11.0 |
|
|
250 |
8.0 |
10.5 |
10.5 |
12.0 |
12.0 |
12.5 |
|
|
315 |
9.5 |
11.5 |
11.5 |
13.0 |
13.0 |
|
|
|
355 |
10.0 |
12.0 |
12.0 |
14.0 |
|
|
|
|
400 |
10.5 |
12.5 |
12.5 |
15.0 |
|
|
|
|
450 |
11.5 |
13.5 |
13.5 |
16.0 |
|
|
|
|
500 |
12.5 |
15.5 |
15.5 |
18.0 |
|
|
|
|
560 |
17.0 |
20.0 |
|
|
|
|
|
|
630 |
20.0 |
23.0 |
|
|
|
|
|
